Backrest And Headrest Adjustment Actuator, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

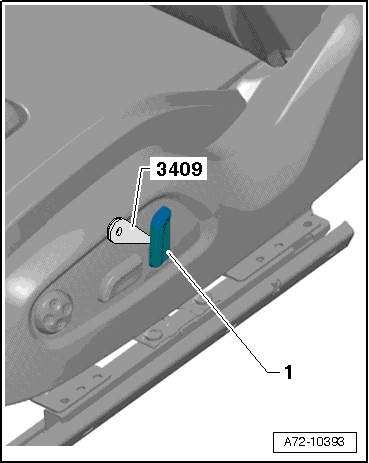

Fig 1: Pry Actuator Out Of Retainer Using 3409
GWWA72-10393Courtesy of AUDI OF AMERICA, LLC

-- Pry the actuator -1- out of the catch using the Trim Removal Wedge 3409.
