Backrest Adjustment Motor, Removing And Installing: Installing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Follow all Safety Precautions when working with pyrotechnic components. Refer to SAFETY PRECAUTIONS .
Before handling airbag units (for example, connecting the electrical connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.

-- Clean the thread on the shaft -3- with a thread tap.

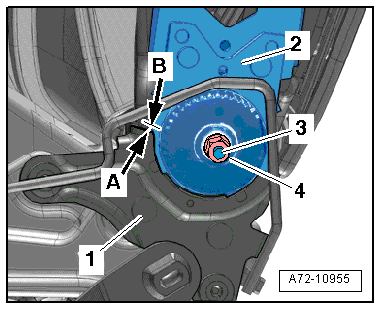

Fig 1: Checking Position Of Backrest Frame -2- And Anchor -1-

Courtesy of AUDI OF AMERICA, LLC

-- Check the position of the backrest frame -2- and the anchor -1- on the left and right side.

The left and right backrest frames must be in the position marked before removal -A and B arrows-.

-- If the left and right backrest frames are not in the position marked before removal, correct their position accordingly.

-- Position the backrest adjustment motor -1- on the bracket -3-.

Fig 2: Installing Backrest Adjustment Motor

Courtesy of AUDI OF AMERICA, LLC

-- Replace the bolt -4-. Coat it with locking compound fluid and tighten it by hand.

It must still be possible to move the backrest adjustment motor.

-- First slide the shaft through the anchor (tunnel side) as far as the stop -2- in the backrest adjustment motor.

-- Check whether the profile of the inserted shaft and mount -2- in the backrest adjustment motor align.

If the shaft profile and the mount in the backrest adjustment motor align:

-- Slide the shaft through backrest adjustment motor and backrest frame.

If the shaft profile and the mount in the backrest adjustment motor do not align:

-- Connect an external power source (12 Volt) to the backrest adjustment motor -1-.

-- Rotate mount -2- until it aligns with the shaft profile.

-- Slide the shaft through backrest adjustment motor and backrest frame.

-- Apply locking compound to the threaded section of the shaft.

-- Install the new nut -4- on the shaft -3- and tighten it.

Fig 3: Checking Position Of Backrest Frame -2- And Anchor -1-

Courtesy of AUDI OF AMERICA, LLC

-- Bolt the backrest adjustment motor on the bracket -3- and tighten it to the tightening specification.

Fig 4: Installing Backrest Adjustment Motor

Courtesy of AUDI OF AMERICA, LLC

Install in reverse order of removal. Note the following:

NOTE:

Make sure the connectors are installed correctly and are secure.

WARNING:

Ignition must be on when connecting battery. If pyrotechnic components (for example, airbag, belt tensioner) are not repaired correctly, they may deploy unintentionally after connecting battery. There must not be anyone inside the vehicle when connecting the battery.

-- Connect the battery ground cable with the ignition turned on. Refer to WORKING ON THE AIRBAG SYSTEM .

NOTE:

If the Airbag Indicator Lamp -K75- indicates a fault, check the DTC memory, erase it and check it again. Refer to Vehicle Diagnostic Tester.
