Securing On Engine And Transmission Holder
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2016 Audi A4, 2015 Audi A4, 2014 Audi A4, 2013 Audi A4, and 2012 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
Special tools and workshop equipment required
- Engine Support Bridge - Additional Hooks (2 pc.) 10-222 A /2
- Engine And Transmission Holder VW6095
- Engine Support Bracket T10358
- Gearbox Support T40206 with T40206 /1
- M8 x 30 bolt, nut, two washers
Procedure
- Draining the ATF. Refer to ATF, DRAINING AND FILLING (As of 11.2014).
- Draining the gear oil. Refer to GEAR OIL, DRAINING AND FILLING .

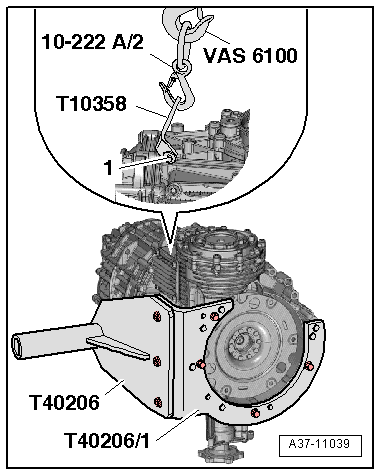

-- Secure the Gearbox Support T40206 with Gearbox Support T40206/1 to the transmission as illustrated.
-- Attach the Engine Support Bracket T10358 with the M8 x 30 bolt -1-, the nut and the two washers to the lifting eye on the right side of the transmission.
-- Connect the Shop Crane VAS6100 and Engine Support Bracket T10358 with the Engine Support Bridge - Additional Hooks (2 pc.) 10-222 A /2.

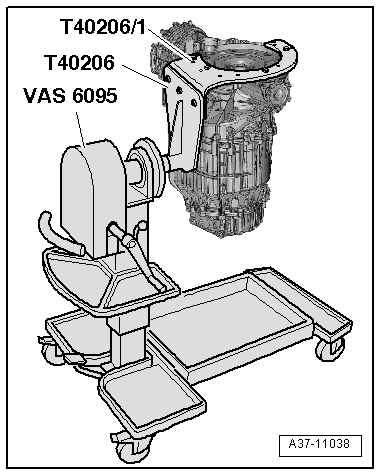

-- Lift the transmission and place it into the Engine and Transmission Holder VAS6095.
