Rear Noise Insulation, RS 4: Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the bolts -4 and 5-.

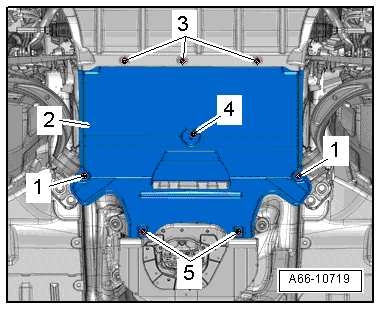

Fig 1: Identifying Rear Noise Insulation Fasteners
GWWA66-10719Courtesy of AUDI OF AMERICA, LLC

-- Remove the expanding pin -1- with the expanding clip.

-- Remove the quick-release connector -3- from the front noise insulation.

-- Remove the rear noise insulation -2-.
