Rear Noise Insulation, All Except RS 4

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Turn the quick-release connectors -6- 180° to the left and loosen them.

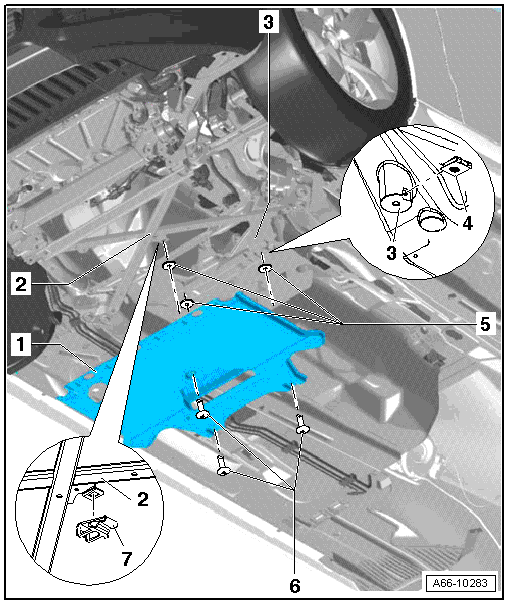

Fig 1: Identifying Rear Noise Insulation Overview
GWWA66-10283Courtesy of AUDI OF AMERICA, LLC

-- Remove the noise insulation toward the rear.

Installing

Install in reverse order of removal.

NOTE:

The quick-release connectors must engage when they are mounted.
