Coolant Pump Toothed Belt, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi A4 Quattro, 2015 Audi A4, and 2014 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

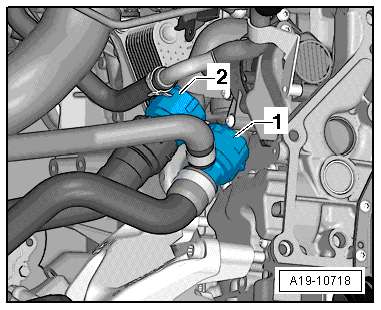

Fig 1: Locating Coolant Hoses

Courtesy of AUDI OF AMERICA, LLC

-- Remove the small coolant pipe. Refer to SMALL COOLANT PIPE, REMOVING AND INSTALLING .

-- Remove the coolant hoses -1 and 2- and lay them aside.

-- Remove the bolts -arrows- and remove the toothed belt cover.

Fig 2: Coolant Pump Toothed Belt

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

The threads could be damaged.

The drive gear bolt has a left thread.

-- Loosen the bolt on the coolant pump drive wheel -1- clockwise in direction of -arrow- and unscrew it 3 turns using the Torque Wrench 1410 VAG1410 and the Torque Wrench 1331 Insert - Ring Wrench - 12mm T10360.

Fig 3: Removing Toothed Belt

Courtesy of AUDI OF AMERICA, LLC

-- Remove the toothed belt -2-.
