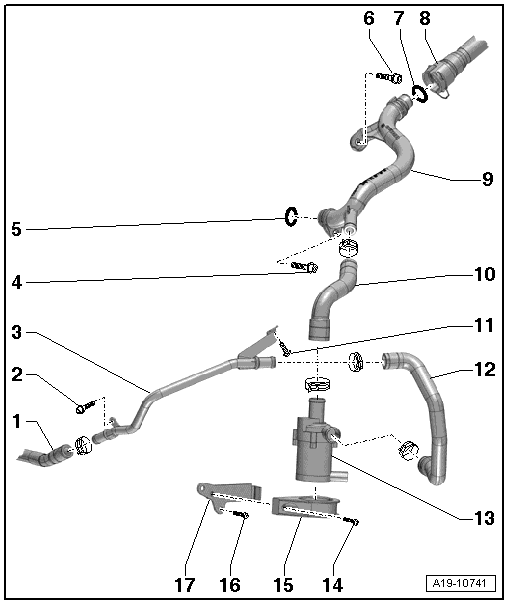

Overview - Coolant Pipes
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi A4 Quattro, 2015 Audi A4, and 2014 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Coolant Hose
- Bolt
- 6 Nm
- Small Coolant Pipe
- Removing and installing. Refer to SMALL COOLANT PIPE, REMOVING AND INSTALLING .
- Bolt
- 9 Nm
- O-Ring
- Replace
- Bolt
- 9 Nm
- O-Ring
- Replace
- Coolant Hose
- Lift the retaining clamp to remove
- Connect to the radiator. Refer to Figure
- Front Coolant Pipe
- Removing and installing. Refer to FRONT COOLANT PIPE, REMOVING AND INSTALLING .
- Coolant Hose
- Bolt
- 6 Nm
- Coolant Hose
- After-Run Coolant Pump -V51-
- Removing and installing. Refer to ELECTRIC COOLANT PUMP, REMOVING AND INSTALLING .
- Bolt
- 4 Nm
- Bracket
- Bolt
- 9 Nm
- Bracket
