Front Muffler, Removing And Installing: Removing

WARNING: This page is about a different car, the 2009 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Noise Insulation

Courtesy of AUDI OF AMERICA, LLC

-- Remove the rear noise insulation -2-. Refer to OVERVIEW - NOISE INSULATION .

-- Remove the bolts -arrows- and the front crossmember, if applicable.

Fig 2: Identifying Bolts And Front Crossmember

Courtesy of AUDI OF AMERICA, LLC

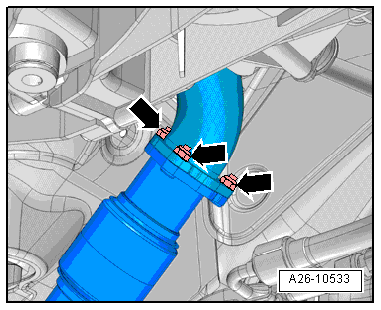

-- Remove the left front muffler nuts -arrows-.

Fig 3: Identifying Left Front Muffler Nuts

Courtesy of AUDI OF AMERICA, LLC

-- Remove the right front muffler nuts -arrows-.

Fig 4: Identifying Right Front Muffler Nuts

Courtesy of AUDI OF AMERICA, LLC

Fig 5: Identifying Bolts - Vehicles With Dual Exhaust System

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

The decoupling elements in the front muffler could be damaged.

Do not bend decoupling elements in front muffler more than 10°.

-- Loosen the clamping sleeve -1- or -2-, slide it back and remove the corresponding front muffler.
