REAR EXPANSION VALVE WITH Hybrid Battery Refrigerant Shut-Off Valve 2 -N517-, REMOVING AND INSTALLING: Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Turn off the ignition.

-- Discharge the refrigerant circuit (refer to Refrigerant R134a, Servicing; Refrigerant Circuit, Using Service Station).

-- Remove the luggage compartment floor covering .

-- Remove the bolts -2 and 3- and the refrigerant lines -1 and 4-.

Fig 1: Identifying Refrigerant Line Components

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect and remove the connector -2- from the bracket.

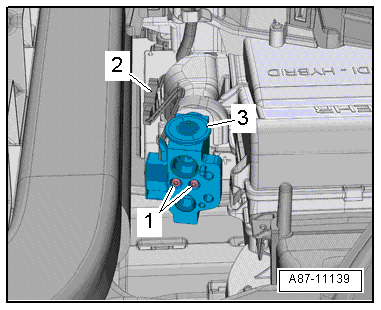

Fig 2: Identifying Hybrid Battery Refrigerant Shut-Off Valve Components

Courtesy of AUDI OF AMERICA, LLC

-- Remove bolts -1-.

-- Remove the Hybrid Battery Refrigerant Shut-Off Valve 2 -N517- -3- from the refrigerant lines to the evaporator.

NOTE:

Close all open lines and connections on the refrigerant line with suitable caps (avoid dirt and moisture from entering the system).
