Coolant Fan Control Module -J293-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2009 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Noise Insulation Panels

Courtesy of AUDI OF AMERICA, LLC

-- Remove the front noise insulation -1-. Refer to OVERVIEW - NOISE INSULATION .

-- Remove the coolant fan connector -1- from the bracket and disconnect it by sliding the retainer back -arrow- and pressing the release down.

Fig 2: Disconnecting Coolant Fan Electrical Connector -1- From Bracket

Courtesy of AUDI OF AMERICA, LLC

-- Free up the electrical wiring harness to the coolant fan control module.

-- Disconnect the connectors -2- and -3-.

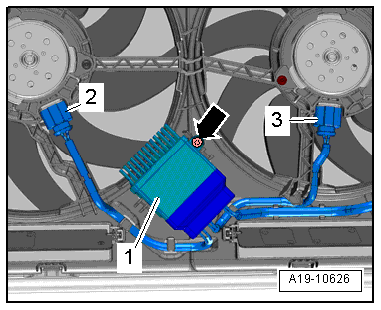

Fig 3: Coolant Fan Control Module -J293- & Connectors

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -arrow- and the coolant fan control module -1-.
