Coolant Pump, Removing And Installing: Removing

WARNING: This page is about a different car, the 2009 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Engine Cover

Courtesy of AUDI OF AMERICA, LLC

-- Remove the front engine cover -bottom arrows-.

-- Drain the coolant. Refer to COOLANT, DRAINING AND FILLING .

Fig 2: Identifying Spanner Wrench 3212

Courtesy of AUDI OF AMERICA, LLC

-- Remove the ribbed belt. Refer to RIBBED BELT, REMOVING AND INSTALLING .

-- Remove the bolts for the coolant pump ribbed belt pulley by counterholding with a Wrench - Pin Type 3212.

NOTE:

Use a cloth to catch any leaking coolant.

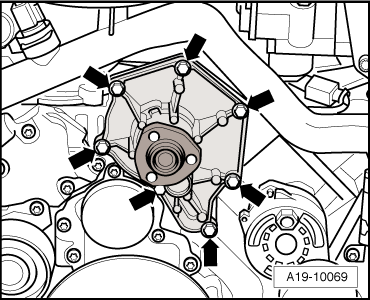

Fig 3: Identifying Bolts -Arrows- For Coolant Pump Removal

Courtesy of AUDI OF AMERICA, LLC

-- Remove the coolant pump bolts -arrows- and the coolant pump.
