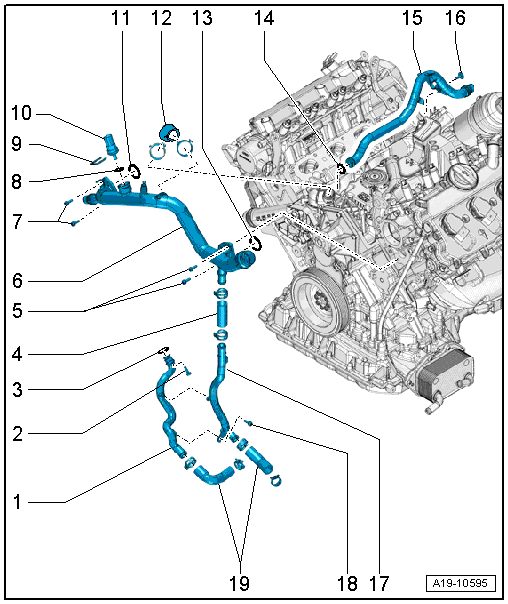

Overview - Coolant Pipes
WARNING: This page is about a different car, the 2009 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
- Left Coolant Pipe
- Together with -item 17-, removing and installing. Refer to LEFT COOLANT PIPES, REMOVING AND INSTALLING .
- Bolt
- 9 Nm
- O-Ring
- Replace
- Connecting Hose
- Bolts
- 9 Nm
- Front Coolant Pipe
- Removing and installing. Refer to FRONT COOLANT PIPES, REMOVING AND INSTALLING .
- Bolts
- 9 Nm
- O-Ring
- Replace
- Clip
- Engine Coolant Temperature Sensor -G62-
- Removing and installing. Refer to Engine Coolant Temperature Sensor -G62-, REMOVING AND INSTALLING .
- Seal
- Replace
- Coolant Hose
- Seal
- Replace
- O-Ring
- Replace
- Upper Coolant Pipe
- Removing and installing. Refer to UPPER COOLANT PIPES, REMOVING AND INSTALLING .
- Bolt
- 9 Nm
- Left Coolant Pipe
- Together with -item 1-, removing and installing. Refer to LEFT COOLANT PIPES, REMOVING AND INSTALLING .
- Bolt
- 9 Nm
- Coolant Hoses
