Left Coolant Pipes, Removing And Installing: Removing

WARNING: This page is about a different car, the 2009 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

-- Drain the coolant (refer to COOLANT, DRAINING AND FILLING ) or, in countries with hot climates, remove the After-Run Coolant Pump -V51- After-Run Coolant Pump -V51-, REMOVING AND INSTALLING .

-- Remove the A/C compressor. Refer to A/C COMPRESSOR, REMOVING AND INSTALLING .

Fig 1: Identifying A/C Compressor & Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- and the A/C compressor bracket.

Fig 2: Air Conditioning Compressor Bracket Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows-.

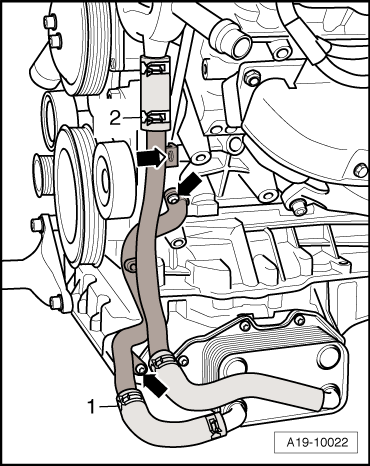

Fig 3: Bolts And Coolant Pipe From Engine

Courtesy of AUDI OF AMERICA, LLC

-- Remove the coolant pipes from the coolant hoses -1- and -2-.

NOTE:

The installation location is shown with the power steering pump removed.
