Outside Air Temperature Sensor -G17-, REMOVING AND INSTALLING, THROUGH MY 2012: Removing

WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

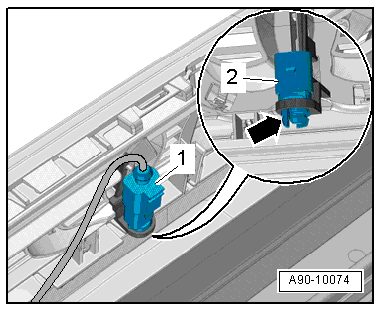

Fig 1: Outside Air Temperature Sensor -G17-, Through My 2011
GWWA90-10074Courtesy of AUDI OF AMERICA, LLC

-- Remove the lock carrier cover. Refer to LOCK CARRIER COVER, REMOVING AND INSTALLING .

-- Disconnect the connector -1-.

-- Carefully press the retaining clips together -arrow- and remove the Outside Air Temperature Sensor -G17- -item 2- upward from the bracket.
