Outside Air Temperature Sensor -G17-, REMOVING AND INSTALLING, FROM MY 2013: Removing

WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

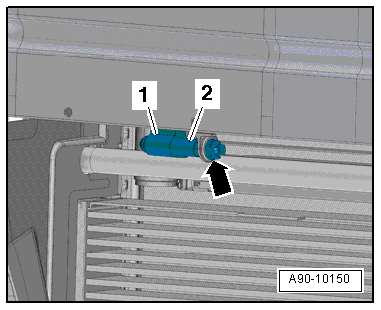

Fig 1: Outside Air Temperature Sensor -G17-, From My 2012
GWWA90-10150Courtesy of AUDI OF AMERICA, LLC

-- Remove the lock carrier cover. Refer to LOCK CARRIER COVER, REMOVING AND INSTALLING .

NOTE:

The front bumper cover is removed in the illustration.

-- Carefully press the retaining clips together -arrow- and remove the Outside Air Temperature Sensor -G17- -item 2- from the bracket (See Fig 1).

-- Disconnect the connector -1-.
