Instrument Cluster -KX2-, REMOVING AND INSTALLING: Removing

WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Adjust steering wheel downward and to rear as far as possible, use entire adjustment range of steering column adjustment for this.

-- Turn off the ignition and remove the key.

-- Remove the gap cover. Refer to INSTRUMENT CLUSTER GAP COVER, REMOVING AND INSTALLING .

-- Place the gap cover on upper steering column trim.

-- Vehicles through MY 2012: remove the left instrument panel vent (refer to INSTRUMENT PANEL VENT, REMOVING AND INSTALLING ) and the MMI screen cover (refer to MMI SCREEN COVER, REMOVING AND INSTALLING ).

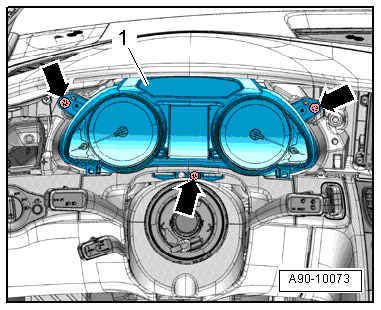

Fig 1: Locating Instrument Cluster Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Vehicles from MY 2013: remove the MMI screen cover. Refer to MMI SCREEN COVER, REMOVING AND INSTALLING .

-- Remove the bolts -arrows-.

-- Pull instrument cluster -1- out until it lies on steering wheel.

-- Disconnect the connector.

-- To disconnect the connector, press the tab -1-, turn the retaining bracket in direction of -arrow- and remove the connector.

Fig 2: Catch And Retainer

Courtesy of AUDI OF AMERICA, LLC

-- Remove instrument cluster to the driver's side between steering wheel and instrument cluster.
