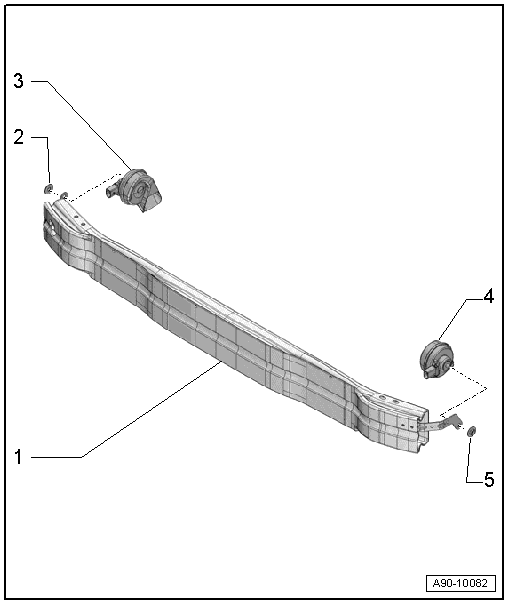

Overview - Horn
WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
Observe notes on contact corrosion. Refer to CONTACT CORROSION .
- Impact Member
- with signal horn bracket
- Nut
- 9 Nm
- Low Tone Horn -H7-
- Removing and installing. Refer to High Tone Horn -H2- /Low Tone Horn -H7-, REMOVING AND INSTALLING .
- High Tone Horn -H2-
- Removing and installing. Refer to High Tone Horn -H2- /Low Tone Horn -H7-, REMOVING AND INSTALLING .
- Nut
- 9 Nm
