Fastener Tightening Specifications

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 Audi A4 Quattro, 2015 Audi A4 Quattro, 2014 Audi A4 Quattro, 2013 Audi A4, and 2012 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

Component	Bolt Size	Nm
Mechatronic Connector to the Transmission Housing		10
Transmission Output Speed Sensor to the Transmission Housing		10

ATF Oil Pan - Tightening Specification and Sequence

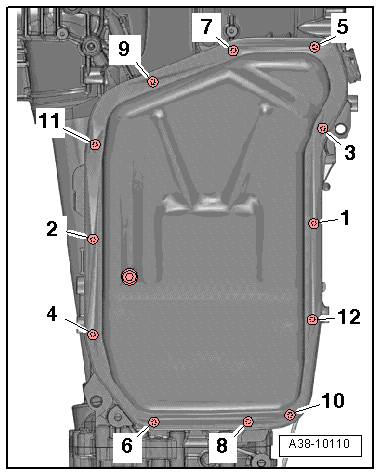

Fig 1: ATF Oil Pan - Tightening Sequence

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Replaced the bolts for the ATF pan.

-- Tighten the bolts in three steps in the sequence shown:

Stage	Bolts	Tightening Specification/Additional Turn
1.	-1 through 12-	Install the new bolts by hand until the bolt heads touch
2.	-1 through 12-	4 Nm
3.	-1 through 12-	Tighten 45° further

Mechatronic, Tightening Specification and Sequence

-- Tighten the bolts to 10 Nm in the following sequence: -1 to 19-.

Fig 2: Mechatronic, Tightening Sequence

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Bolts -18- and -19- are shorter.

Bolt -18- attaches the transmission output speed sensor -G195- to the transmission housing.

Bolt -19- attaches the Mechatronic connector to the transmission housing.
