ATF Pan, ATF Strainer And MECHATRONIC Overview: Notes
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 Audi A4 Quattro, 2015 Audi A4 Quattro, 2014 Audi A4 Quattro, 2013 Audi A4, and 2012 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
There is a risk of damaging the transmission.
- Do not start the engine when there is no ATF in the transmission or if the ATF pan has been removed.
NOTE:
Always replace the Mechatronic unit if it is dirty or faulty.
Clean working conditions for the automatic transmission. Refer to CLEAN WORKING CONDITIONS .
General repair instructions, refer to REPAIR INFORMATION .
Coat O-rings and seals with ATF. Other types of lubrication lead to faults in the transmission hydraulics.

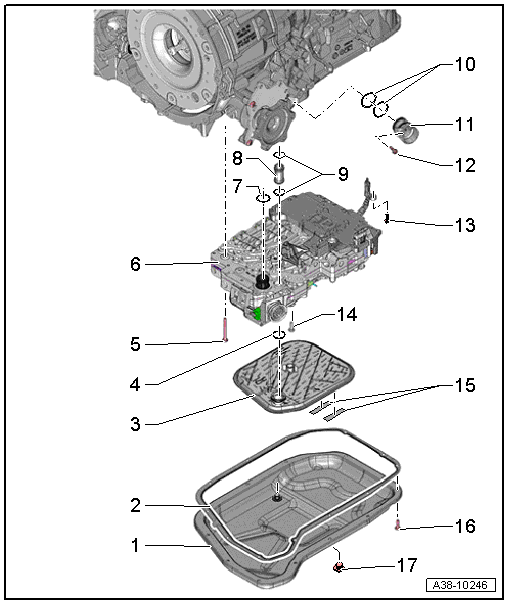

- ATF Pan
- Refer to AUTOMATIC TRANSMISSION FLUID OIL PAN
- Seal
- Removing and installing
- ATF Filter
- Refer to ATF FILTER
- O-ring
- Replace
- Bolt
- Mechatronic, tightening specification and sequence MECHATRONIC, TIGHTENING SPECIFICATION AND SEQUENCE
- Mechatronic
- Refer to MECHATRONIC UNIT
- O-ring
- Replace
- ATF Oil Pipe
- O-ring
- Replace
- Seals
- Replace
- Installing into the connector housing -11-
- Connector Housing
- Bolt
- 5.5 Nm
- Bolt
- 10 Nm
- For attaching the transmission output speed sensor -G195- to the transmission housing
- Bolt
- 10 Nm
- For attaching the Mechatronic connector to the transmission housing
- Magnets
- Make sure the entire surface contacts the ATF filter
- Clean before installation
- Bolt
- Removing and installing
- Tightening specification and sequence TIGHTENING SPECIFICATION AND SEQUENCE
- Oil Drain Plug
- For the ATF in the transmission
- Tightening specification -1- TRANSMISSION DRAIN AND INSPECTION PLUG ASSEMBLY OVERVIEW => ATF Drain Plug
