Overview - Final Drive 0BE, 0BF, Disassembling And Assembling

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2015 Audi S4, 2015 Audi A4 Quattro, and 2014 Audi S4. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:

Only some components on the rear final drive can be disassembled.

  • Currently both chambers cannot be removed from the final drive.

    Refer to item -11- Left chamber, and item -25- Right chamber (See Fig 1).

  • It is therefore currently not possible to repair the interior components.

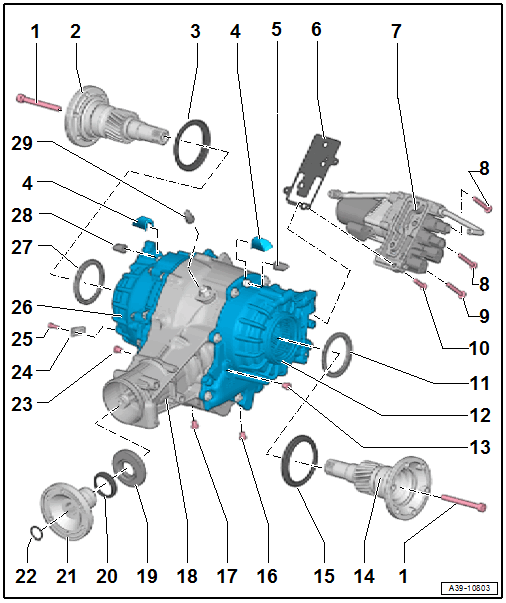

Fig 1: Overview Of Final Drive (0BE, 0BF)
GWWA39-10803Courtesy of AUDI OF AMERICA, LLC

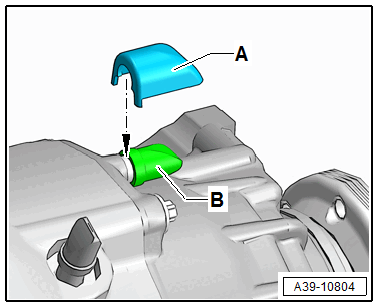

Fig 2: ATF Breather Pipe And Cover
GWWA39-10804Courtesy of AUDI OF AMERICA, LLC
  1. Bolt
    • 50 Nm + 180° turn
    • Always replace.
  2. Right Flange Shaft
  3. Protective Ring
  4. ATF Breather Pipe
    • For Right and left chambers (See Fig 2)
    • Clip onto the bleed pipe
  5. Seal
    • With strainer, Left chamber
  6. Hydraulic Control Unit Gasket
  7. Hydraulic Control Unit
  8. Bolt
    • 20 Nm
    • Quantity: 2
    • M8; 50 mm long
    • Follow the tightening sequence. Refer to INSTALLING  - "Attach the hydraulic control unit -1- to the rear final drive as follows:".
  9. Bolt
    • 20 Nm
    • M8; 50 mm long
    • with a permanent seal under the bolt head
    • Coat the threads with Sealing Compound D 176 501 A1.
    • Follow the tightening sequence. Refer to INSTALLING  - "Attach the hydraulic control unit -1- to the rear final drive as follows:".
  10. Bolt
    • 20 Nm
    • M8; 30 mm long
    • Follow the tightening sequence. Refer to INSTALLING  - "Attach the hydraulic control unit -1- to the rear final drive as follows".
  11. Shaft Seal
  12. Left Chamber
  13. ATF Check Plug
    • 15 Nm
    • Always replace.
    • With permanent seal
  14. Left Flange Shaft
  15. Protective Ring
  16. ATF Drain Plug
    • 15 Nm
    • Always replace.
    • With permanent seal
  17. Gear Oil Drain Plug
    • 15 Nm
    • Always replace.
    • With permanent seal
  18. Final Drive Housing
  19. Shaft Seal
  20. Protective Ring
  21. Flange/Driveshaft
  22. Circlip
    • Always replace.
    • Installing on final drive 0BE and 0BF. Refer to INSTALLING:  - "Install the circlip -1- as follows:" (See Figure).
  23. Gear Oil Check Plug
    • 15 Nm
    • Always replace.
    • With permanent seal
  24. Bracket
    • For the wiring harness
  25. Bolt
    • 9 Nm
  26. Right Chamber
  27. Shaft Seal
  28. Seal
    • With strainer, Right chamber (See Fig 2)
  29. Final Drive Bleeder
    • Clip onto the bleed pipe
