General Description For Start/Stop System
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

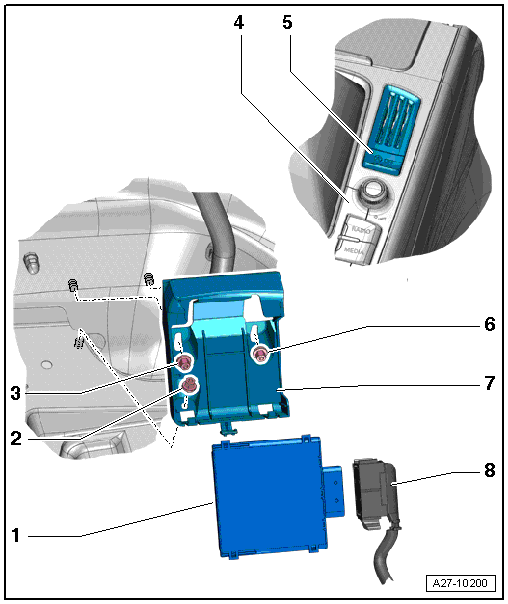

- Voltage Stabilizer -J532-
- Removing and installing. Refer to VOLTAGE STABILIZER, REMOVING AND INSTALLING .
- Nut
- 3 Nm
- Nut
- 3 Nm
- Cover/Multimedia System Control Head -E380-
- Start/Stop Mode Button -E693-
- Various installed locations
- Removing and installing. Refer to Start/Stop Mode Button -E693-, REMOVING AND INSTALLING .
- Nut
- 3 Nm
- Bracket
- For the Voltage Stabilizer -J532-
- Connector
