GROUND CABLE WITH Battery Monitoring Control Module -J367-, REMOVING AND INSTALLING: Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Turn off the ignition and remove the key.

CAUTION:

TDI (SCR) vehicles

After the ignition is switched off, the reducing agent goes from the metering line to the Reducing Agent Injector -N474- and back into the reducing agent active chamber.
Wait until all the reducing agent has been returned before working in this area. This could take up to 10 minutes after switching off the ignition.
Only after this is complete can the battery be disconnected. Again, this could take up to 10 minutes after switching off the ignition.

Sedan:

Fig 1: Locating Vehicle Tool Kit And Battery

Courtesy of AUDI OF AMERICA, LLC

-- Lift the luggage compartment floor and engage it on the body.

-- Remove the nut -1- and remove the cover -2- for the vehicle tool kit.

-- Remove the tool kit mount.

Avant:

Fig 2: Identifying Luggage Compartment Floor -2-, Nuts -1- And Spare Tire -3-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the luggage compartment floor -2-.

-- Remove the nut -1- and if equipped, remove the spare wheel -3-.

-- If equipped, remove the subwoofer. Refer to Subwoofer -R211-, REMOVING AND INSTALLING .

Negative terminal cover - version I:

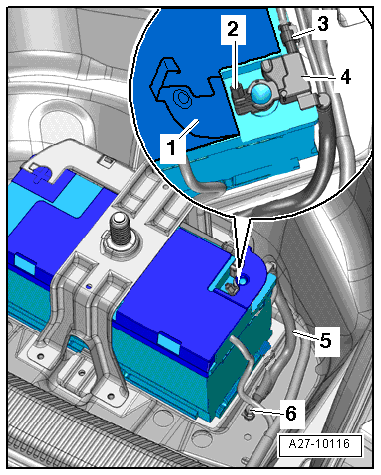

Fig 3: Loosen Nut Several Turns And Remove Ground Cable

Courtesy of AUDI OF AMERICA, LLC

-- Pull the cover -2- over the negative terminal upward slightly -arrow-.

-- Loosen the nut several turns and remove the battery ground cable terminal -1- from the battery terminal.

-- Disconnect the connector -3-.

-- Remove the nut -6- and remove the ground cable -5- with the Battery Monitoring Control Module -J367- -item 4-.

Negative terminal cover - version II:

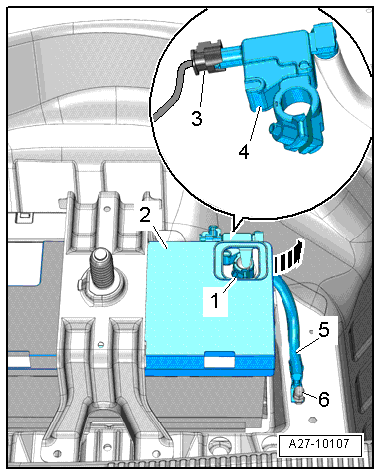

Fig 4: Opening Cover Over Battery Negative Terminal

Courtesy of AUDI OF AMERICA, LLC

-- Open the cover -2- over the battery negative terminal.

-- Loosen the nut several turns and remove the battery ground cable terminal -1- from the battery terminal.

-- Disconnect the connector -3-.

-- Remove the nut -6- and remove the ground cable -5- with the Battery Monitoring Control Module -J367- -item 4-.
