Ribbed Belt Pulley With Freewheel, Removing And Installing: Notes

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

General Information

There are different ribbed belt pulley with freewheel.

Before removing check which special tool must be used for the removal of the ribbed belt pulley with freewheel.

CAUTION:

The length of the ribbed belt is different depending on the ribbed belt pulley with freewheel installed.

Check which ribbed belt pulley with freewheel is installed and make sure that the correct ribbed belt will be installed.

Characteristics of the Ribbed Belt Pulley with Freewheel

-A- small ribbed belt pulley with freewheel, special tool to be used Puller - Bevel Gear T10474 or Multi-Tooth Adapter 3400

-B- large ribbed belt pulley with freewheel, special tool to be used Multi-Tooth Adapter 3400

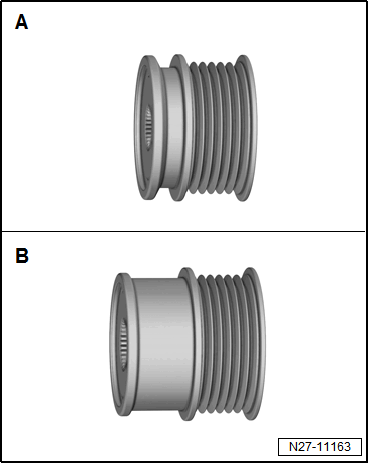

Fig 1: Identifying Ribbed Belt Pulleys

Courtesy of AUDI OF AMERICA, LLC

NOTE:

The ribbed belt for the large ribbed belt pulley with freewheel must be larger because it has a larger diameter.

Special tools and workshop equipment required

Puller - Bevel Gear T10474
Multi-Tooth Adapter 3400
Torque Wrench 1332 40-200Nm VAG1332
Inner Hex Socket 8 mm or TORX T50
