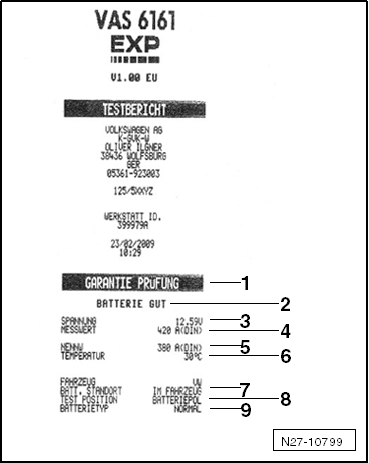

Explanation Of Test Results
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Type of test
- Test result
- Measured voltage
- Battery -A- measured cold start value
- Battery -A- cold start value set on the Battery Tester VAS6161
- Temperature measured above the Battery -A-
- Battery -A- component location
- Battery terminal clamp position set on the Battery Tester VAS6161
- Selected battery type
NOTE:
The printed test results are required for warranty claims.
