Ribbed Belt TENSIONER, Removing And Installing: Removing

WARNING: This page is about a different car, the 2009 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

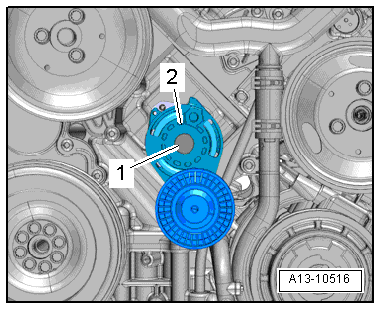

Fig 1: Identifying Cover -1- And Ribbed Belt Tensioner -2-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the ribbed belt. Refer to RIBBED BELT, REMOVING AND INSTALLING .

-- Remove the cover -1- and the bolt below it.

-- Remove the ribbed belt tensioner -2- from the cylinder block.
