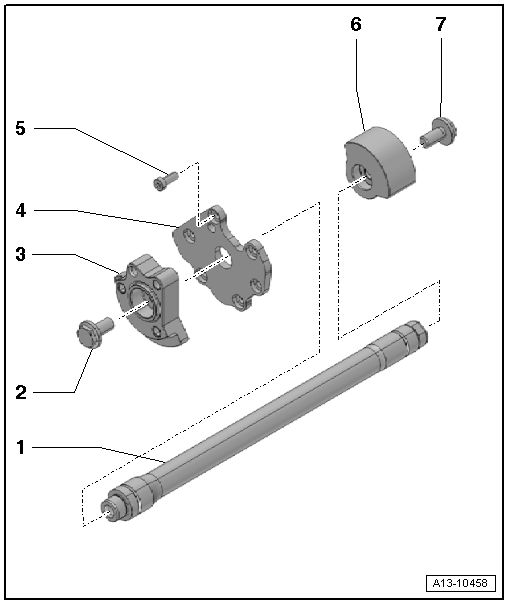

Overview - Balance Shaft
WARNING: This page is about a different car, the 2009 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
- Balance Shaft
- Removing and installing. Refer to BALANCE SHAFT, REMOVING AND INSTALLING .
- Bolt
- 60 Nm
- To loosen and fasten, use drill diameter 8 mm as counter-holder
- Balance Shaft Transmission Side
- Can only be placed on the balance shaft in one position
- Gear Carrier
- Bolt
- 13 Nm
- Balance Shaft Belt Pulley Side
- Can only be placed on the balance shaft in one position
- Bolt
- 60 Nm
- To loosen and fasten, use drill diameter 8 mm as counter-holder
