Balance Shaft, Removing And Installing: Removing

• The transmission is removed.

-- Remove the belt pulley side sealing flange. Refer to SEALING FLANGE, REMOVING AND INSTALLING, BELT PULLEY SIDE .

-- Remove the lower timing chain cover. Refer to LOWER TIMING CHAIN COVER, REMOVING AND INSTALLING .

-- Remove the power take-off drive chain. Refer to POWER TAKE-OFF DRIVE CHAIN, REMOVING AND INSTALLING .

-- To protect against cuts, wrap the point and the cutting edges on an 8 mm diameter drill bit with insulating tape.

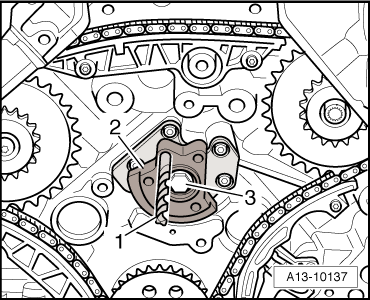

Fig 1: Securing Balance Weight

Courtesy of AUDI OF AMERICA, LLC

-- Secure the balance weight -2- at rear of the engine with an 8 mm diameter drill bit -item 1-.

-- Remove the bolt -3- and remove the balance weight from the balance shaft.

-- Remove the bolt -2- while counter holding the balance weight using the drift and remove the balance weight -1- from balance shaft at the front of the engine.

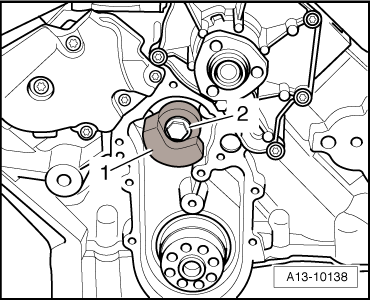

Fig 2: Identifying Balance Weight -1- And Bolt -2-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- and the balance shaft and bearing end bracket at the rear of the engine.

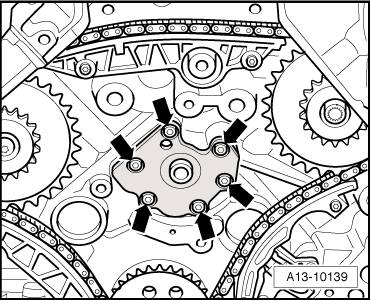

Fig 3: Identifying Bearing End Bracket Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Remove the balance shaft back out of the cylinder block.
