Special Tools

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi A4 Quattro, 2014 Audi A4 Quattro, and 2013 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

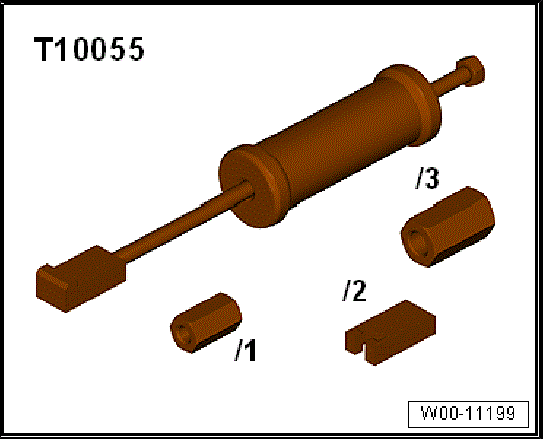

Puller - Unit Injector - T10055-

Courtesy of
Crankshaft Seal Installer Kit - T10122B- or Assembly Device - T10122C-

Courtesy of
Seal Installer, Intermediate Shaft - T10356/1-

Courtesy of
Counterhold - Vibration Damper - T10355-

Courtesy of

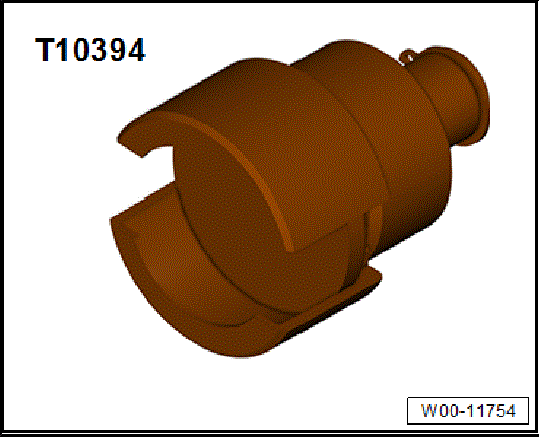

Puller - Balancer Shaft - T10394-

Courtesy of
Vibration Damper Assembly Tool - T10531-

Courtesy of
Seal Installer - Sealing Flange Guide Sleeve - T20097-

Courtesy of
Belt Tensioner Locking Tool - T40098-

Courtesy of
Wrench - 21mm - T40263-

Courtesy of
Adapter - T40314-

Courtesy of
Dial Gauge - 0-10mm - VAS6079-

Courtesy of
Pilot Drift - VW222A

Courtesy of
Dial Indicator Holder - VW387-

Courtesy of
Press Piece - 31.5mm - VW418A-

Courtesy of
Press Piece - 28x100mm - VW421-

Courtesy of

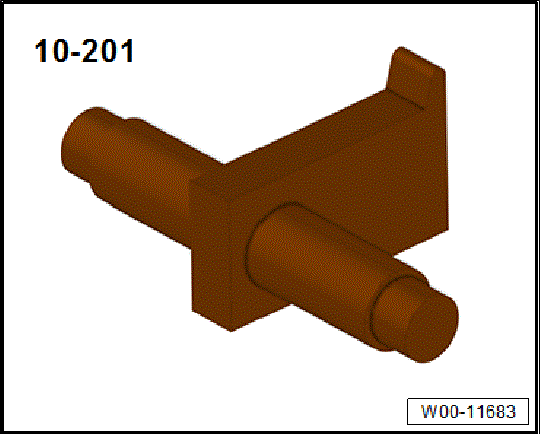

Counterhold - Flywheel - 10-201-

Courtesy of
Bearing Installer - Multiple Use - 40-103-

Courtesy of
Not Illustrated:
- Torx Bit - T40 - T10545-
- Puller Jaw - T10394/1-
- Piston Installation Sleeve - T40347-
- 24 mm Socket
