Transmission Side Sealing Flange, Removing And Installing, Oil Side Sealing Lip: Installing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi A4 Quattro, 2014 Audi A4 Quattro, and 2013 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

Replace the sealing flange after removal.

To prevent contamination of the lubricating system with sealant residue, place a clean cloth over the open part of the oil pan.

CAUTION: Risk of Injuring the Eyes from Sealant Residue

Wear protective eyewear.

Remove any remaining sealant from the cylinder block -1- using, for example, a rotating plastic brush.

Courtesy of AUDI OF AMERICA, LLC
Clean any oil and grease off of the sealing surfaces and crankshaft journal.

TIP:

Be sure to check the expiration date of the sealant.

Cut the tube nozzle at the front marking (nozzle diameter: approximately 2 mm).

Courtesy of AUDI OF AMERICA, LLC

NOTE: Risk of Engine Damage Due to Excess Sealant in the Lubrication System

Do not apply sealant bead thicker than indicated.

Courtesy of AUDI OF AMERICA, LLC

Sealant bead thickness: 2 to 3 mm
The sealing flange must be installed within five minutes of applying the sealant.

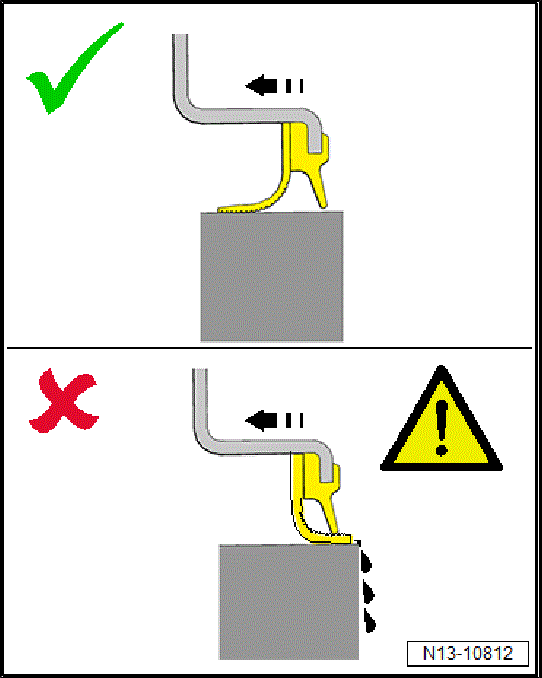

The sealing lip must be pointed to the engine after installing. If the sealing lip »folds« outward when installing, leaks will result.

Check the -T10122/6A- -B-; it must not be tilted or contaminated.
Mount the -T10122/1- -A- on the -T10122/6A- -B- in direction of -arrow-.
Slide the Sealing Flange -C- on the Guide Piece -B-, with the outer side on it in direction of -arrow-.
Remove Guide Piece -A-.

Place the Guide Piece -A- with the Sealing Flange -B- on the crankshaft journal.

TIP:

It is not necessary to tighten the bolts -arrows-

Slide the Sealing Flange -B- through the Guide Piece -A- on the crankshaft journal.
Remove the Guide Piece -A-.
Tighten the sealing flange.

After installing the sealing flange, the sealant must harden for approximately 30 minutes. Only afterward may the engine oil be replenished.

Further installation is performed in reverse order of removal, while noting the following:

Install the intermediate plate. Refer to Intermediate Plate, Installing .
Install the drive plate. Refer to DRIVE PLATE, REMOVING AND INSTALLING .
Check the oil level. Refer to ENGINE OIL, FILLING AND CHECKING LEVEL .
