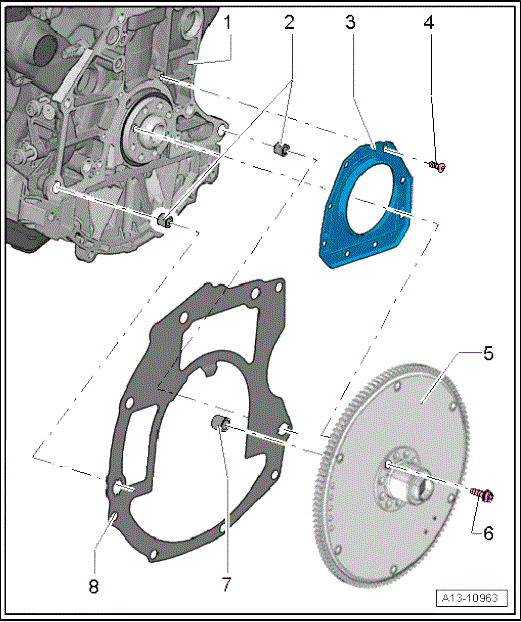

Overview - Cylinder Block, Transmission Side: Notes
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi A4 Quattro, 2014 Audi A4 Quattro, and 2013 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
- Cylinder Block
- Alignment Sleeves
- Transmission Side Sealing Flange
- With gasket
- Always replace after removing
- Different versions. Refer to SEALING FLANGE, REMOVING AND INSTALLING, TRANSMISSION SIDE .
- Do not apply oil to the seal.
- Before installing, remove oil residue from crankshaft journal with a clean cloth
- Bolt
- Tightening Specifications and Sequence
- With 6 bolts. Refer to Transmission Side Sealing Flange with Six Bolts - Tightening Specifications and Sequence .
- With 8 bolts. Refer to Transmission Side Sealing Flange with Eight Bolts - Tightening Specifications and Sequence .
- Drive Plate
- Removing and installing. Refer to DRIVE PLATE, REMOVING AND INSTALLING
- Equipment versions with a manual transmission must have a needle bearing inside the drive plate; if necessary install the needle bearing. Refer to NEEDLE BEARING IN DRIVE PLATE, REPLACING .
- For equipment version with a dual-clutch transmission/automatic transmission, then do not install a needle bearing inside the crankshaft. Remove the needle bearing if necessary. Refer to NEEDLE BEARING IN DRIVE PLATE, REPLACING .
- Bolt
- 60 Nm + 90°
- Always replace after removing
- Needle Bearing
- Equipment version with manual transmission
- Replacing. Refer to NEEDLE BEARING IN DRIVE PLATE, REPLACING .
- Intermediate Plate
- Installing. Refer to Intermediate Plate, Installing .
