Auxiliary Components Bracket, Removing And Installing, Vehicles With Electro-Mechanical Power Steering: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi A4 Quattro, 2014 Audi A4 Quattro, and 2013 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

-- Drain the coolant. Refer to COOLANT, DRAINING AND FILLING .

-- Disconnect the connectors -2 and 3- from the Oil Pressure Switch - F22- and Reduced Oil Pressure Switch - F378-.

Courtesy of AUDI OF AMERICA, LLC

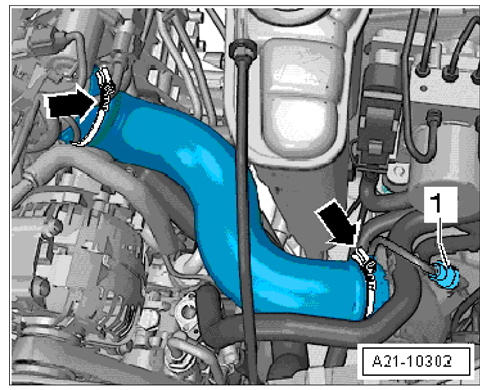

-- Loosen the hose clamps -arrows- and remove the air guide hose.

-- Disconnect and free up the connector from the Charge Air Pressure Sensor - G31- -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -1 and 2- and move the front coolant pipe upward.

-- Remove the ribbed belt. Refer to Ribbed Belt, Removing and Installing, Vehicles with Electro-Mechanical Power Steering .

-- Remove the generator. Refer to GENERATOR and GENERATOR, REMOVING AND INSTALLING .

-- Remove the A/C compressor from the bracket and tie it up with the refrigerant hoses connected to the longitudinal member. Refer to A/C COMPRESSOR, REMOVING AND INSTALLING ON BRACKET .

All additional procedures are described. Refer to Sub-Assembly Bracket, Removing and Installing .
