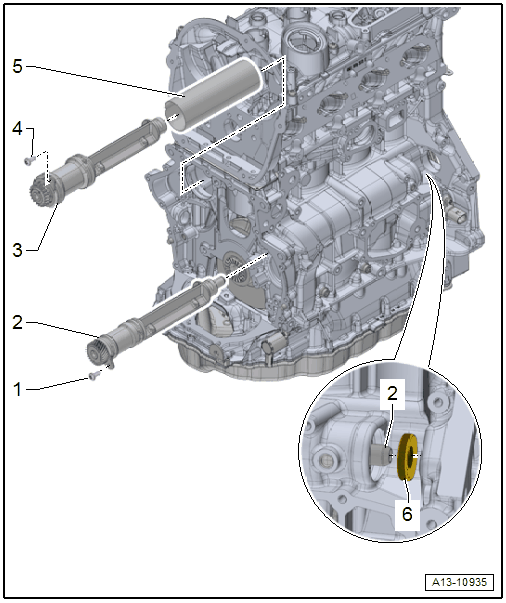

Overview - Balance Shaft: Notes
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi A4 Quattro, 2014 Audi A4 Quattro, and 2013 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- 9 Nm
- Always replace after removing
- Balance Shaft
- Always replace after removing
- Intake side
- Lubricate the bearing with engine oil
- Replacing. Refer to BALANCE SHAFT, REMOVING AND INSTALLING, INTAKE SIDE .
- Balance Shaft
- Always replace after removing
- Exhaust side
- Lubricate the bearing with engine oil
- Replacing. Refer to BALANCE SHAFT, REMOVING AND INSTALLING, EXHAUST SIDE .
- Bolt
- 9 Nm
- Always replace after removing
- Balance Shaft Pipe
- Installation position. Refer to Balance Shaft Pipe Installation Position .
- Exhaust Side Balance Shaft Seal
- Replacing. Refer to BALANCE SHAFT, REMOVING AND INSTALLING, INTAKE SIDE .
