Noise Insulation, Removing And Installing: Installing

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2016 Audi S4, 2015 Audi S4, 2014 Audi S4, 2013 Audi A4, and 2012 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

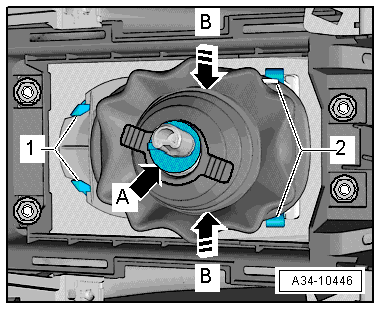

Fig 1: Mount Noise Insulation On Tabs And Then Push Down On It Until Tabs

Courtesy of AUDI OF AMERICA, LLC

-- Mount the noise insulation on the tabs -1- and then push down on it until the tabs -2- lock.

-- Stretch the boot over the shift lever into the rounded groove -arrow A-.

-- Press the support ring into the boot over the shift lever support in the direction of -arrow B- as far as the stop.

Install in reverse order of removal. Note the following:

-- Install the Multimedia System Control Head -E380-. Refer to Multimedia System Control Head -E380-, REMOVING AND INSTALLING .

-- Install the shift lever knob with the shift lever boot. Refer to GEARSHIFT KNOB, REMOVING AND INSTALLING .
