Gearshift Knob, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2016 Audi S4, 2015 Audi S4, 2014 Audi S4, 2013 Audi A4, and 2012 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

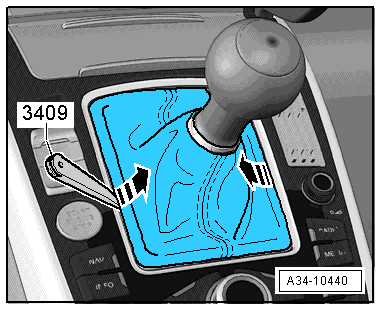

Fig 1: Remove Gearshift Lever Boot Using 3409
GWWA34-10440Courtesy of AUDI OF AMERICA, LLC

-- Remove the gearshift lever boot using the Trim Removal Wedge 3409 in direction of -arrows-.

-- Fold the shift lever boot up and over the shift lever knob.

Fig 2: Locating Clip And Pulling Off Gear Lever Knob Together With Boot
GWWA34-0647Courtesy of AUDI OF AMERICA, LLC

-- Open the clamp -arrow- and remove the gearshift lever knob with the shift lever boot.
