Rear Lid Seal, Removing And Installing, Sedan

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

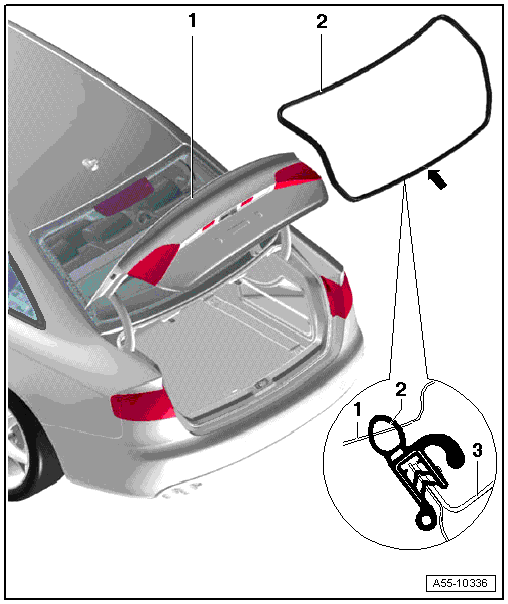

Fig 1: Identifying Rear Lid Seal
GWWA55-10336Courtesy of AUDI OF AMERICA, LLC
  1. Rear Lid
  2. Rear Lid Seal
    • To remove, remove seal from body flange.
    • When installing, align the seal with the vulcanized joint -arrow- toward the center of the vehicle.
    • Beginning at the seam, press the seal all around onto the body flange.
  3. Body Flange
