Fuel Filler Door Cup, Removing And Installing: Installing
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
Installation is performed in the reverse order of removal. Note the following.

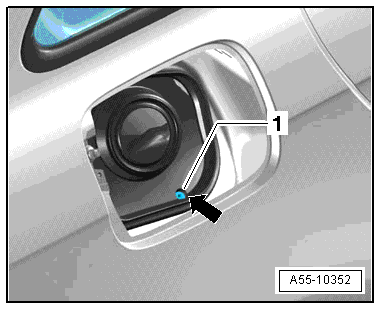

-- To route the drain hose without kinking it, the edge of the drain hole in the fuel filler door cut up align with the edge of the hole in the body -arrow-.
