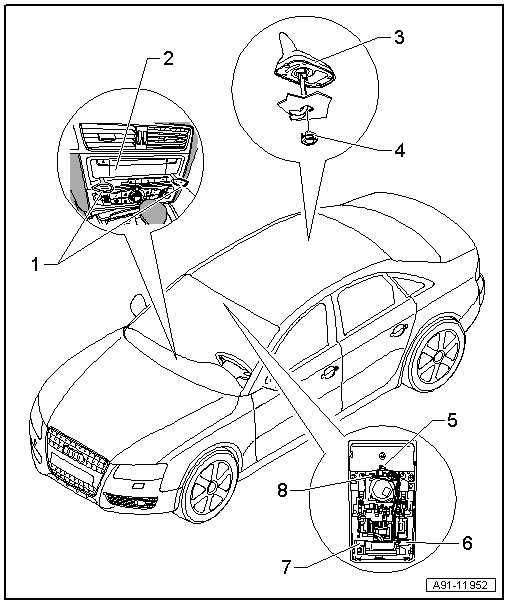

Telephone System Component Location Overview, USA From 11/03/2008
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Radio Removal Tool T10057
- Information Electronics Control Module 1 -J794-
- Connector assignment, MMI cell phone preparation (from 11/03/2008), refer to CELL PHONE PREPARATION, CONNECTOR ASSIGNMENT, MMI FROM 11/03/2008
- MMI Bluetooth Hands-Free Setup Connectors, refer to MMI BLUETOOTH HANDS-FREE SETUP CONNECTORS .
- Removing and installing, refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING
- Radio/Telephone/Navigation System Antenna -R52-
- Antenna systems, refer to ANTENNA SYSTEMS .
- Nut
- 6 Nm
- Front Interior Lamp -W1-
- Microphone Unit in Front Roof Module -R164-
- Assembly Overview (from 11/03/2008), refer to Microphone Unit in Front Roof Module -R164-, FROM 11/03/2008 .
- Right Front Microphone -R141-
- Removing and installing, refer to Microphone Unit in Front Roof Module -R164-, REMOVING AND INSTALLING
- Left Front Microphone -R140-
- Removing and installing, refer to Microphone Unit in Front Roof Module -R164-, REMOVING AND INSTALLING
- 6-Pin Connector -T6c-
