Telephone System Component Location Overview, From 11/03/2008
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

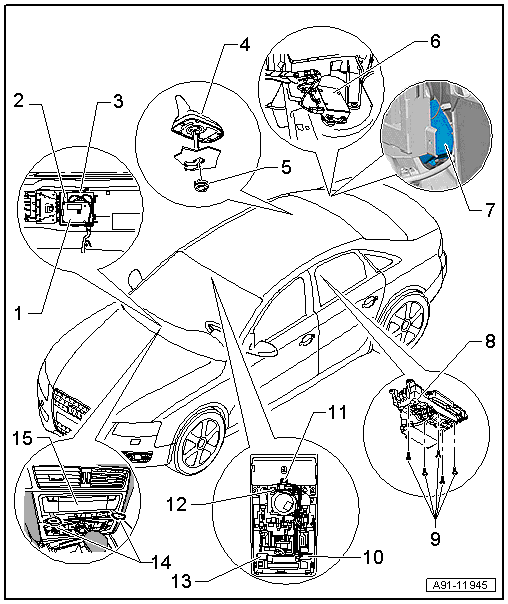

- Telephone Transceiver -R36-
- Cell Phone Preparation Connector Assignment (CAN), refer to CELL PHONE PREPARATION CONNECTOR ASSIGNMENT (CAN) .
- Bluetooth Hand-Free Calling Connector Assignment (CAN), refer to BLUETOOTH HAND-FREE CALLING CONNECTOR ASSIGNMENT, CAN .
- Removing and installing, refer to TELEPHONE TRANSCEIVER, REMOVING AND INSTALLING
- Bluetooth Antenna -R152-
- E-Box
- Radio/Telephone/Navigation System Antenna -R52-
- Antenna systems, refer to ANTENNA SYSTEMS .
- Nut
- 6 Nm
- Cellular Telephone Amplifier -R86-, Sedan
- Connector assignment (from MY 09), refer to Cell Phone Amplifier -R86- CONNECTOR ASSIGNMENT, FROM MY 2009 .
- Removing and installing, refer to Cellular Telephone Amplifier -R86-, REMOVING AND INSTALLING, SEDAN
- Cellular Telephone Amplifier -R86-, Avant
- Connector assignment (from MY 09), refer to Cell Phone Amplifier -R86- CONNECTOR ASSIGNMENT, FROM MY 2009 .
- Removing and installing, refer to Cellular Telephone Amplifier -R86-, REMOVING AND INSTALLING, AVANT
- Telephone Baseplate -R126-
- Removing and installing (Sound system), refer to Telephone Baseplate -R126-, REMOVING AND INSTALLING, TELEPHONE HOLDER .
- Removing and installing (cell phone mount), refer to Telephone Baseplate -R126-, REMOVING AND INSTALLING, CELL PHONE MOUNT .
- Bolt
- 1 Nm
- Quantity: 4 sound system
- Quantity: 2 cell phone mount
- Right Front Microphone -R141-
- Removing and installing, refer to Microphone Unit in Front Roof Module -R164-, REMOVING AND INSTALLING
- Front Interior Lamp -W1-
- Microphone Unit in Front Roof Module -R164-
- Assembly Overview (from 11/03/2008), refer to Microphone Unit in Front Roof Module -R164-, FROM 11/03/2008 .
- 6-Pin Connector -T6c-
- Left Front Microphone -R140-
- Removing and installing, refer to Microphone Unit in Front Roof Module -R164-, REMOVING AND INSTALLING
- Radio Removal Tool T10057
- Information Electronics Control Module 1 -J794-
- Connector assignment, MMI cell phone preparation (from 11/03/2008), refer to CELL PHONE PREPARATION, CONNECTOR ASSIGNMENT, MMI FROM 11/03/2008
- Connector assignment, BT telephone (from 11/03/2008), refer to BLUETOOTH CAR TELEPHONE, CONNECTOR ASSIGNMENTS FROM 11/03/2008 .
- MMI Bluetooth Hands-Free Setup Connectors, refer to MMI BLUETOOTH HANDS-FREE SETUP CONNECTORS .
- Removing and installing, refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING
