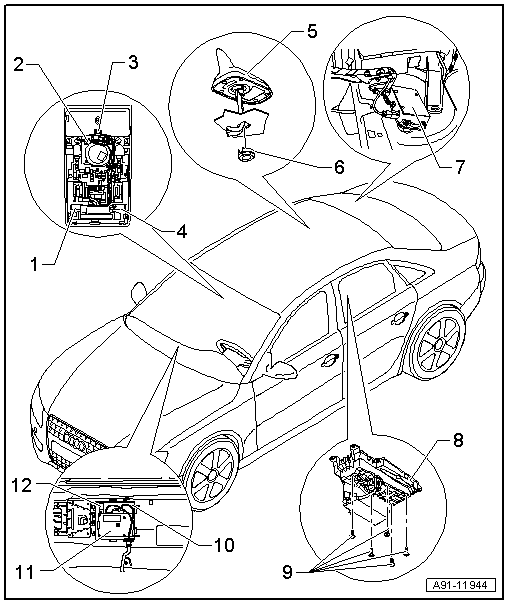

Component Location Overview - Telephone System, Through 11/03/2008
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Left Front Microphone -R140-
- Removing and installing, refer to Microphone Unit in Front Roof Module -R164-, REMOVING AND INSTALLING
- Front Interior Lamp -W1-
- Microphone Unit in Front Roof Module -R164-
- Assembly Overview (through 11/03/2008), refer to Microphone Unit in Front Roof Module -R164-, THROUGH 11/03/2008 .
- 6-Pin Connector -T6c-
- Right Front Microphone -R141-
- Removing and installing, refer to Microphone Unit in Front Roof Module -R164-, REMOVING AND INSTALLING
- Radio/Telephone/Navigation System Antenna -R52-
- Antenna systems, refer to ANTENNA SYSTEMS .
- Nut
- 6 Nm
- Cellular Telephone Amplifier -R86-
- Connector assignment (through MY 08), refer to Cellular Telephone Amplifier -R86- CONNECTOR ASSIGNMENT, THROUGH MY 2008 .
- Removing and Installing, Sedan, refer to Cellular Telephone Amplifier -R86-, REMOVING AND INSTALLING, SEDAN
- Telephone Baseplate -R126-
- Removing and installing (Sound system), refer to Telephone Baseplate -R126-, REMOVING AND INSTALLING, TELEPHONE HOLDER .
- Removing and installing (cell phone mount), refer to Telephone Baseplate -R126-, REMOVING AND INSTALLING, CELL PHONE MOUNT .
- Bolt
- 1 Nm
- Quantity: 4 sound system
- Quantity: 2 cell phone mount
- E-Box
- Telephone Transceiver -R36-
- Cell Phone Preparation Connector Assignment (CAN), refer to CELL PHONE PREPARATION CONNECTOR ASSIGNMENT (CAN) .
- Cell Phone Preparation Connector Assignment, (MMI through 11/03/2008), refer to CELL PHONE PREPARATION CONNECTOR ASSIGNMENT, MMI, THROUGH 10/31/2008 .
- Bluetooth Car Phone Connector Assignment, (through 11/03/2008), refer to BLUETOOTH CAR PHONE CONNECTOR ASSIGNMENT, THROUGH 10/31/2008 .
- Removing and installing, refer to TELEPHONE TRANSCEIVER, REMOVING AND INSTALLING
- Bluetooth Antenna -R152-
