Component Location Overview - Telephone System, Japan, Through 11/03/2008

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

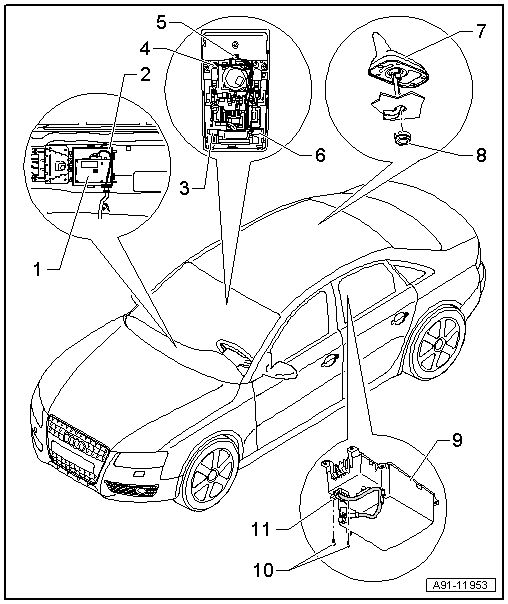

Fig 1: Telephone System Component Location Overview, Japan (Through 11/03/2008)

Courtesy of AUDI OF AMERICA, LLC

Telephone Transceiver -R36-
- Connector assignment (through 11/03/2008), refer to CELL PHONE PREPARATION CONNECTOR ASSIGNMENT, JAPAN THROUGH 10/31/2008 .
- Removing and installing, refer to TELEPHONE TRANSCEIVER, REMOVING AND INSTALLING
E-Box
Left Front Microphone -R140-
- Removing and installing, refer to Microphone Unit in Front Roof Module -R164-, REMOVING AND INSTALLING
6-Pin Connector -T6c-
Front Interior Lamp -W1-
- Microphone Unit in Front Roof Module -R164-
- Assembly Overview (through 11/03/2008), refer to Microphone Unit in Front Roof Module -R164-, THROUGH 11/03/2008 .
Right Front Microphone -R141-
- Removing and installing, refer to Microphone Unit in Front Roof Module -R164-, REMOVING AND INSTALLING
Radio/Telephone/Navigation System Antenna -R52-
- Antenna systems, refer to ANTENNA SYSTEMS .
Nut
- 6 Nm
Center console storage compartment
Bolt
- Quantity: 2
- 1 Nm
Connector cable
- Removing and installing (through 11/03/2008), refer to CELL PHONE MOUNT CONNECTION CABLE, REMOVING AND INSTALLING, JAPAN .
