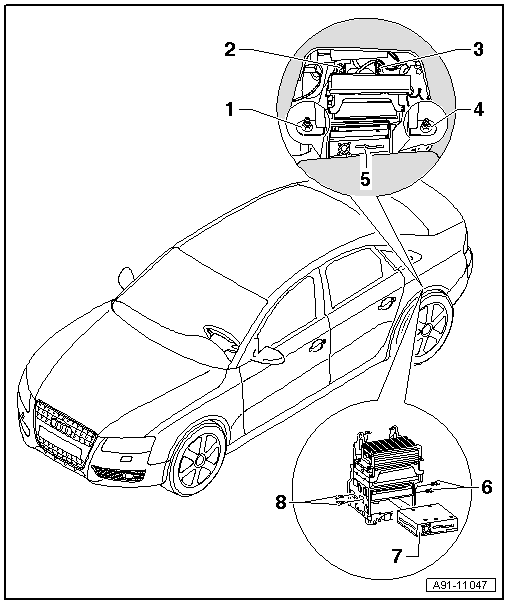

TV System Component Location Overview, Through 10/31/2008
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Nut
- 5 Nm
- Nut
- 5 Nm
- Nut
- 5 Nm
- Nut
- 5 Nm
- Infotainment Rack
- Bolt
- 2 Nm
- Quantity: 2
- TV Tuner -R78-
- Hybrid connector assignment, refer to TV Tuner -R78- CONNECTOR ASSIGNMENT, HYBRID .
- Removing and installing (through 11/03/2008), refer to TV Tuner -R78-, REMOVING AND INSTALLING, THROUGH 11/03/2008 .
- Screw
- 2 Nm
- Quantity: 2
