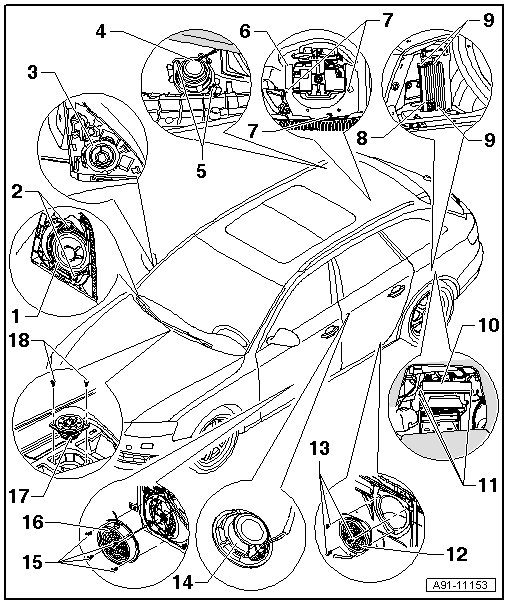

Component Location Overview - Sound System, AVANT, Through 11/03/2008
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Left Front Treble Speaker -R20- /Right Front Treble Speaker -R22-
- Removing and installing, refer to FRONT TREBLE SPEAKER, REMOVING AND INSTALLING
- Left Front Midrange Speaker -R103- /Right Front Midrange Speaker -R104- (B+O)
- Removing and installing, refer to FRONT MIDRANGE SPEAKER, REMOVING AND INSTALLING, B+O
- Screw
- 1 Nm
- Quantity: 2
- Left Front Treble Speaker -R20- /Right Front Treble Speaker -R22- (B+O)
- Removing and installing, refer to FRONT TREBLE SPEAKER, REMOVING AND INSTALLING, B+O
- Left Rear Midrange Speaker -R105- /Right Rear Midrange Speaker -R106-
- Removing and installing, refer to REAR MIDRANGE SPEAKER, REMOVING AND INSTALLING, AVANT
- Screw
- 2 Nm
- Quantity: 2
- Subwoofer in Rear Shelf -R157-
- Removing and installing, refer to Subwoofer in Rear Shelf -R157-, REMOVING AND INSTALLING, AVANT
- Nut
- 4.5 Nm
- Quantity: 2
- Digital Sound System Control Module -J525-, CAN
- Connector Assignment Standard (CAN), refer to SOUND SYSTEM CONNECTOR ASSIGNMENTS STANDARD, CAN .
- Connector Assignment B+O (CAN), refer to SOUND SYSTEM CONNECTOR ASSIGNMENTS, BANG & OLUFSEN, CAN .
- CAN, Removing and Installing, refer to Digital Sound System Control Module -J525-, REMOVING AND INSTALLING, CAN
- Bolt
- 3.5 Nm
- Quantity: 3
- Digital Sound System Control Module -J525-, MMI
- Connector Assignment basic plus (through 10/31/2008), refer to CONNECTOR ASSIGNMENTS, SOUND SYSTEM BASIC PLUS, MMI THROUGH 11/03/2008 .
- Connector assignment, Standard through 10/31/2008, refer to CONNECTOR ASSIGNMENTS, STANDARD SOUND SYSTEM, MMI, THROUGH 11/03/2008 .
- Connector Assignment B+O (MMI), refer to SOUND SYSTEM CONNECTOR ASSIGNMENTS, BANG & OLUFSEN, MMI .
- Removing and installing (MMI through 10.31.2008), refer to Digital Sound System Control Module -J525-, REMOVING AND INSTALLING, MMI, THROUGH 11/03/2008 .
- Screw
- 4.5 Nm
- Quantity: 3
- Left Rear Mid-Bass Speaker -R159- /Right Rear Mid-Bass Speaker -R160-
- Removing and installing, refer to REAR MID-BASS SPEAKER, REMOVING AND INSTALLING
- Screw
- 3 Nm
- Quantity: 3
- Left Rear Treble Speaker -R14- /Right Rear Treble Speaker -R16-
- Removing and installing, refer to LEFT/RIGHT REAR TREBLE SPEAKER -R14 - / -R16 -, REMOVING AND INSTALLING
- Screw
- 3 Nm
- Quantity: 4
- Left Front Mid-Bass Speaker -R101- /Left Front Bass Speaker -R21- /Right Front Mid-Bass Speaker -R102- /Right Front Bass Speaker -R23-
- Removing and installing, refer to FRONT MIDRANGE SPEAKER AND FRONT BASS SPEAKER, REMOVING AND INSTALLING
- Center Mid-Treble Speaker -R158-
- Removing and installing, refer to Center Mid-Treble Speaker -R158-
- Screw
- 1 Nm
- Quantity: 2
