Component Location Overview -
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

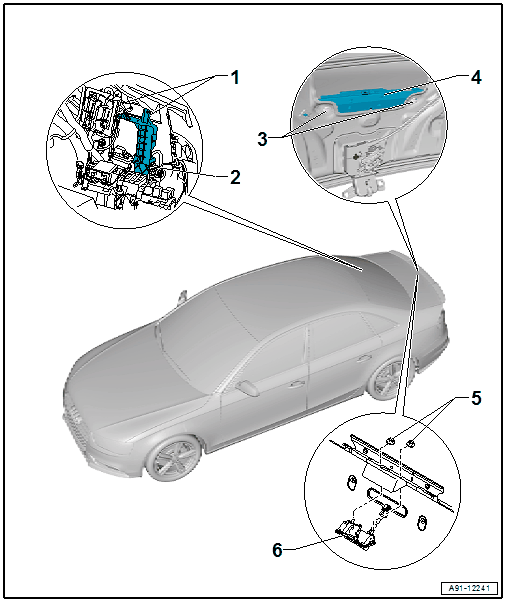

- Bolt
- 2 Nm
- Quantity: 2
- Rearview Camera System Control Module -J772-
- Connector assignment, refer to Rearview Camera System Control Module -J772- CONNECTORS .
- Removing and installing, refer to Rearview Camera System Control Module -J772-, REMOVING AND INSTALLING
- Calibrating, refer to REARVIEW CAMERA SYSTEM, CALIBRATING .
- Nut
- 6 Nm
- Quantity: 2
- Anti-Theft Protection
- Nut
- 6 Nm
- Quantity: 2
- Rearview Camera -R189-
- Removing and installing (Sedan), refer to Rearview Camera -R189-, REMOVING AND INSTALLING, SEDAN .
- Removing and Installing, Avant, refer to Rearview Camera -R189-, REMOVING AND INSTALLING, AVANT
- Calibrating, refer to REARVIEW CAMERA SYSTEM, CALIBRATING .
