Assembly Overview, Through My 2012

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

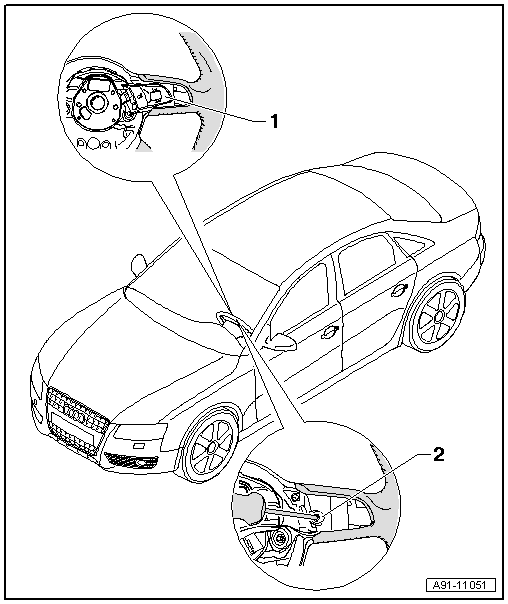

Fig 1: Identifying Multifunction Steering Wheel
GWWA91-11051Courtesy of AUDI OF AMERICA, LLC
  1. Multifunction buttons
  2. Bolt
    • 3 Nm
