Multimedia System Control Head -E380-, REMOVING AND INSTALLING: Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Vehicles with an Automatic Transmission:

-- Switch on the ignition.

-- Place the selector lever in the "S" position.

All vehicles:

-- Switch off the ignition.

The Multimedia Control Head -E380- is fastened -1- with springs in the center console -arrows-.

Fig 1: Identifying Multimedia Control Head Is Fastened With Springs In Center Console

Courtesy of AUDI OF AMERICA, LLC

-- Remove the A/C system control head, refer to DISPLAY AND CONTROL HEAD .

Fig 2: Identifying Selector Lever Boot

Courtesy of AUDI OF AMERICA, LLC

-- Carefully pry out the selector lever boot with the Trim Removal Wedge 3409 at the side in direction of -arrows- and fold upward.

-- Carefully remove the trim molding around the Multimedia System Control Head -E380-.

CAUTION:

If the Multimedia System Control Head -E380- is removed with too much force, the catches on the Access/Start Authorization Button -E408- can be damaged, because the wires to the button are too short.

Carefully loosen and remove the Multimedia System Control Head -E380-.

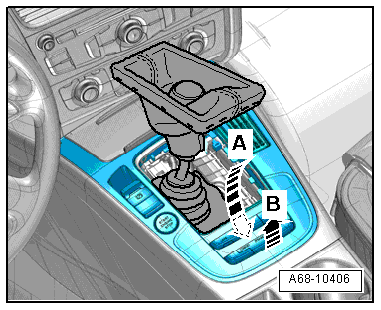

-- Grip with a hand under the Multimedia System Control Head -E380- in direction of -arrow A- and carefully remove slightly upward from the center console in direction of -arrow B-.

Fig 3: Carefully Pry Out Selector Lever/Shift Lever Boot

Courtesy of AUDI OF AMERICA, LLC

-- Release and disconnect all connectors from the back of the Multimedia System Control Head -E380-.

Remove the Multimedia System Control Head -E380-.
