Multimedia System Control Head -E380-, REMOVING AND INSTALLING: Notes

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

The Multimedia System Control Head -E380- -1- is located in the center console at the front.

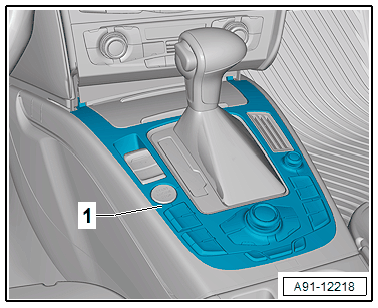

Fig 1: Identifying Multimedia System Control Head

Courtesy of AUDI OF AMERICA, LLC

-- Turn off all electrical consumers.
