Window Shaft Strips

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

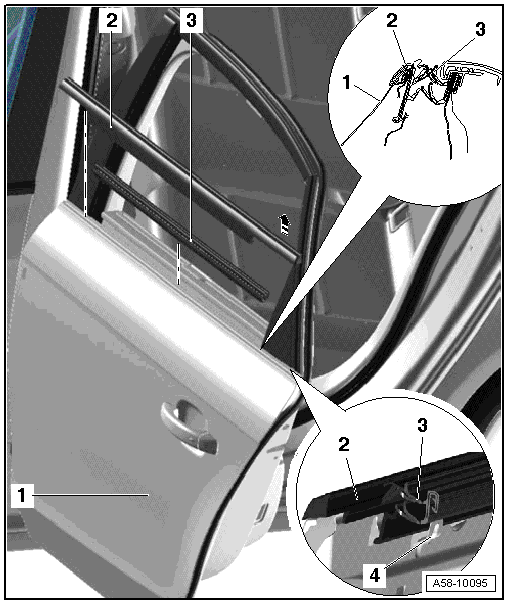

Fig 1: Identifying Outer And Inner Window Shaft Strip Overview
GWWA58-10095Courtesy of AUDI OF AMERICA, LLC
  1. Door
  2. Outer Window Shaft Strip
    • Removing:

      The door trim panel is removed. Refer to REAR DOOR TRIM PANELS .

      -- Run door window all the way up.

      -- Remove shaft strip upward.

  3. Inner Window Shaft Strip
    • Removing:

      The door trim panel is removed. Refer to REAR DOOR TRIM PANELS .

      -- Remove shaft strip upward.

  4. Clip
    • Quantity: 3
