Garage Door Opener Control Module -J530-, REMOVING AND INSTALLING, THROUGH MY 2012: Removing
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

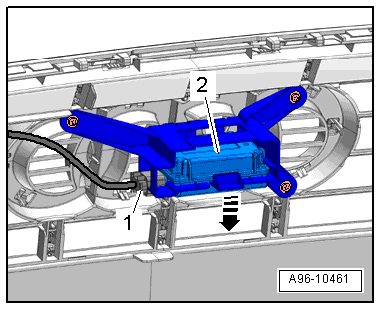

-- Remove the lock carrier cover. Refer to Front Bumper .
-- Disconnect the connector -1-.
-- Release the clip -arrow- and remove the Garage Door Opener Control Module -J530- -item 2- from the frame.
