Garage Door Opener Control Module -J530-, REMOVING AND INSTALLING, FROM MY 2013: Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

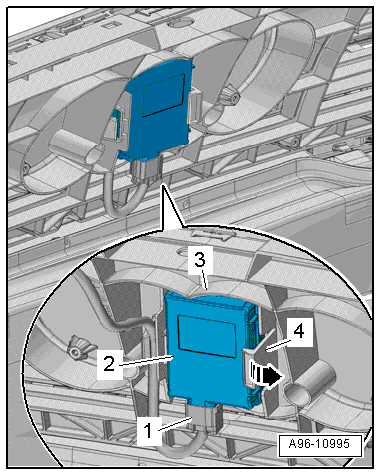

Fig 1: Removing And Installing Garage Door Opener Control Module -J530- (From MY 2013)

Courtesy of AUDI OF AMERICA, LLC

-- Remove the lock carrier cover. Refer to Front Bumper .

-- Release the tab -4- -arrow- and remove the control module -2- from the mount -3-.

-- Disconnect the connector -1-.
