Comfort System Central Control Module -J393-, REMOVING AND INSTALLING: Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

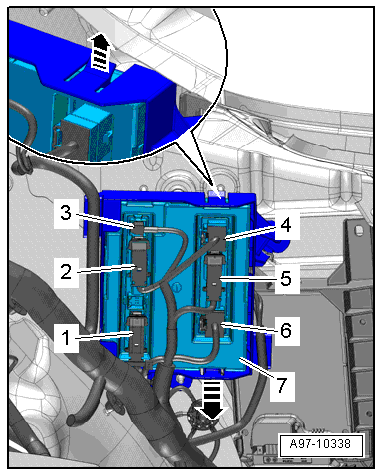

Fig 1: Removing Comfort System Central Control Module

Courtesy of AUDI OF AMERICA, LLC

-- Open the luggage compartment right side trim.

-- Release the clips -arrows- and remove the Comfort System Central Control Module -J393- -item 7- from the retaining frame.

-- Carefully disconnect the connectors -4- and -6- and antenna connector -3-.

-- Disconnect the connectors -1, 2 and 5-.

-- To disconnect the connector, press the tab -1-, turn the retaining bracket in direction of -arrow- and remove the connector.

Fig 2: Catch And Retainer

Courtesy of AUDI OF AMERICA, LLC

-- Remove the Comfort System Central Control Module -J393-.
